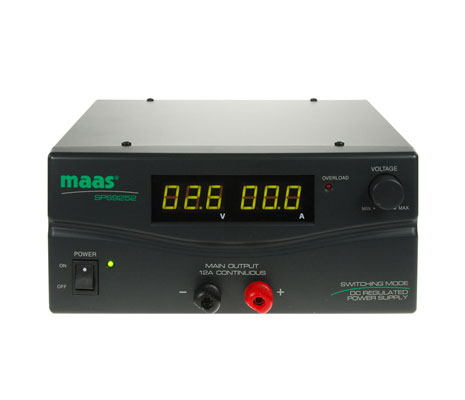

Maas sps 9252 bench power supply 3-30v dc 12a

Switching bench power supply 12 Amp 3-30 Volt adjustable and optional 13.8 volt fixed voltage switch with a weight of only 2.7 kg from Maas Power Supplies

£119.99

WebDescription:

Switching power supply
• 12 Amp 3-30 Volt adjustable and optional 13.8 volt fixed voltage switch with a weight of only 2.7 kg from Maas Power Supplies
• high quality power supply featuring the latest switching power technology, ideal for use with radio communication systems.

Technical data

Operating voltage
  • 230 Volt-AC/ 50Hz
Output voltage
  • 30-30 volts DC regulated or 13.8 volt DC fixed voltage (selected by switch on the bottom of unit)
Output current
  • 12 amps constant
  • 15 A bursts
Ripple and Noise max.
  • <50mVs
Load Regulation
  • <200mV
Line Regulation
  • <50mV
Meters
  • LED 3-digit digital meters for voltage and current, Bi-color LED with fault indication
DC connectors
  • screw terminals
Cooling
  • Fan
Safety
  • Protection against overload and overheating, short circuit and reverse polarity protection, output overvoltage protection at 33 volts
Features
  • dark gray metal housing with rubber feet, high efficiency with PFC (Power Factor Correction Dynamic)> 0.95 maximizes the required current, high RFI stability
  Dimensions (WxHxD)
  • 220x110x220 mm
Weight
  • 2.7 kg



Shipping info: This item ships from the UK
