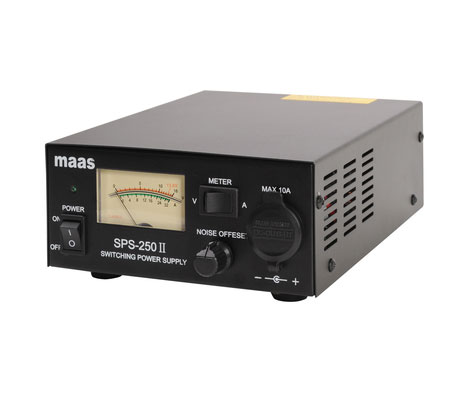

Maas sps-250-11 bench power supply 9-15v dc/25a

compact switching bench power supply with separate analogue meters to display volts and amps from Maas Power Supplies

£58.99

WebDescription:

compact switching power supply with separate analogue meters to display volts and amps from Maas Power Supplies

Technical data

Operating voltage
  • 220-230V AC / 50-60 Hz
Output voltage
  • adjustable 9-15V DC or 13.8 V DC fixed voltage
Output current
  • 15 A constant / 17 A briefly
Output voltage regulation
  • <2%
Features & Safety

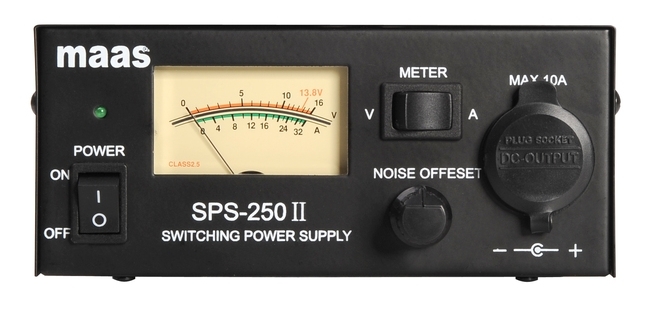

  • two illuminated analog meters to display volts and amps
  • Fixed voltage switch on the back of 13.8 V DC
  • rugged metal housing with base
  • LED operation indicator
  • On / Off switch
  • DC output jacks on the back
  • Cigarette lighter socket on the front for low current up to 10 A
  • DC terminal block on the front for low current to 3 A
  • Noise offset setting for suppressing noise
  • Fan on rear
  • integrated security
  • Short circuit
  • Overload Protection
Dimensions W x H x D
  • 170 mm x 125 mm x 225 mm
