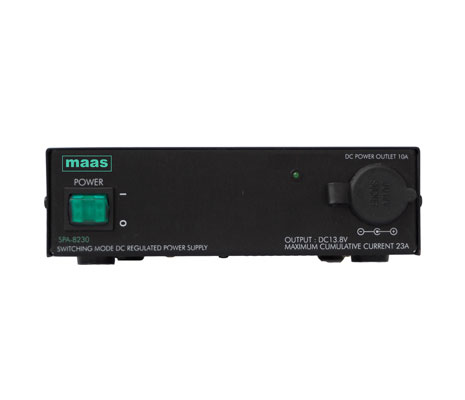

Maas spa-8230 bench power supply 23 amp

Switching bench power supply (switch mode) from Maas Power Supplies with very compact dimensions and low weight.

£69.99

WebDescription:

Operating voltage 230 V AC/ 50Hz
Output voltage
  • 13.8 Volt DC Fixed Voltage
  • Finetune by Trimmer mögich 13.3 to 14.5 volts DC
Output current constant 23 Amp
Output current, short-term 25 Amp
Output Power up to 330 watts
Ripple & Noise / Ripple & Noise <50mVss, 5mVrms
Load regulation / load regulation <100mV for load changes from 0-100%
Line regulation / control input voltage  <50mV change in the input voltage of + / -10%
Power Indicator
  • Illuminated power switch
  • LED on the front (red / green)
DC connectors
  • 2 banana jacks 4mm in screw / clamp design on the back
  • Front Cigarette lighter socket on the front
  Cooling Fan
Safety
  • Overcurrent (Overload)
  • Constant short-circuit current (Short Circuit Protection by Constant Current Circuit)
  • Surge from 16.5 V (Output Over Voltage Protection)
  • Overheating (Over Temp)
Features
  • dark gray metal housing
  • Rubber feet
  • PFC Power Factor Control
  • Cable with plug and IEC connector included
Approvals
  • CE-EMC EN 55022
  • CE-LVD: EN 60950
Dimensions (WxHxD) 181x63x190 mm
Weight approx 1.55 kg
