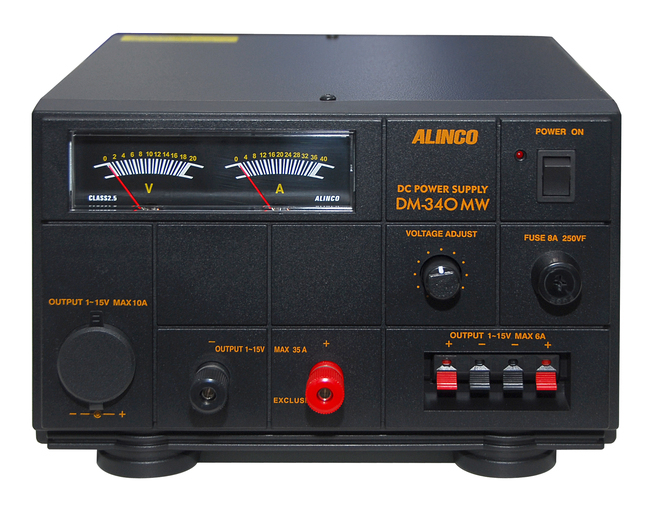

Alinco dm-340-mw bench power supply 1-15v, 35a

Robust transformer bench power supply with adjustable output voltage 1-15V DC and output current to 35 A

£159.99

WebDescription:

robust transformer power supply with adjustable output voltage 1-15V DC and output current to 35 A

Specifications

Operating voltage
  • 230 VAC / 50 Hz
    		•
    Output voltage
  • 1-15V DC regulated
    		•
    Output current
  • 30 A constant (@ 13.8 V)
  • 35 A short time (50% duty cycle of 1 min interval)
    		•
    Output voltage regulation
  • > 2%
    		•
    Ripple voltage
  • > 10mVp-p
    		•
    Equipment
    • Two analog instruments for separate display of Volts & Amps (Class 2.5)
    • On-/Off-Schalter & LED power indicator on the front
    • Cigar lighter socket on the front (max. 10A)
    • Terminal strip for small consumers (up to 6A) on the front
    • Main connector (up to 35A) on the front
    • Controller for output voltage
    • automatic protection switching (to load <35A)
    • integrated 8-A fuse
    • temperature-controlled fan
    • Ground connection on the back
    • Schuko power cord included
    Dimensions WxHxD in mm
  • 235 x 153 x 280 (including protrusions)
    		•









    Weight: 9.5 kg

    Shipping info: This item ships from the UK
