WebDescription:

 - Over-all features

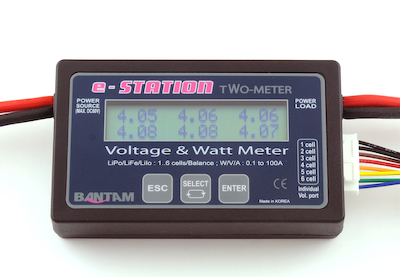

   TWO-METER  is a very sophisticated electronic device that controlled by high performance
microprocessor and precise resistors. It has three functions of ‘watt-meter’,  ‘battery checker’ and
self-balancer. Those functions are essential for  electric flyers to ensure safe battery condition and to
measure the electric  consumptions of the power system. And also, the built-in self-balancer can
equalize the individual voltages instantly.
 TWO-METER  can handle all types of Lithium batteries(LiPo, LiIo, LiFe) consisting of  serial-wired cells,
but the battery pack has to have a balancing plug for  checking voltages.

 - Watt-meter  program
  The  Watt-meter circuit can measure the electric current up to 100A. You can  verify the electric
consumptions on your power system. You can drive the ESC without radio and receiver, using integrated signal generator.



 - Battery  checker
  TWO-METER  can show you the voltage and residual capacity of your Lithium battery pack  with its
individual voltage of each cells.



 - Integrated self-balancer
  TWO-METER has an integrated self-balancing circuit which is self-operative without  linking to charger.
When you connect the battery pack to the individual  port of the device the balancing job will be started
instantly. In this  case the individual cell voltages will be equalised to the lowest cell voltage  of the
battery pack.

 - Servo Drive / Test
  TWO-METER has a integrated signal generator to drive the servo. In 'Watt' menu, you can control the
servo by increments or decrements of signal. To drive the servo, a battery pack of 4.8V is necessary in
connection of Y-harness.
